All New: XLink BT HD

Link Your Cell Phone to your Home Phone with High Definition Wideband Audio

We are very proud to introduce the neweset XLink model, the all new XLink BT HD.

XLink BT HD User Guide click here Support and FAQ click here
  • Latest technology Bluetooth 5.0

  • Wideband Audio over Bluetooth and telephone.

  • Enhanced Bluetooth Audio with full echo cancellation and noise reduction

  • Connects to ONE cell phones

  • Wireless software updates and configuration over Bluetooth.

  • No more running around to answer your cell phone - use any home phone

  • Cancel your landline and save money!

  • Supports all antique and modern telephones

  • High power ringing - will ring all your house telephones including rotary antique telephones

  • DTMF and Rotary / Pulse dialing supported


The XLink BT HD is the newest XLink. This model uses the latest Bluetooth standards to provide the highest quality audio connection and wireless product updates. All in the same size and shape popularized with the XLink BT2 model.

With an easy pair button, the XLink BT HD connects to ONE cell phones. If the cell phone rings then the connected house telephones ring. The connected house telephones can be used to make calls wihtout a landline, because they now use the cell phone.

Do you no longer have a landline? Have you decided that paying for a landline every month is no longer necessary? The XLink BT HD allows you to use your cell phone through your regular home telephones. Your cell phone can be left charging in a convenient location. If your cell phone rings - all the home telephones connected to the XLink BT2 ring. Make outgoing calls using your home telephones even though you no longer have a landline!

Using Bluetooth® 5.0 wireless technology, the XLink BT HD communicates wirelessly with your cell phone. There are NO extra cables to buy. There are no additional monthly charges. Whenever your cell phone is placed within range, the XLink BT HD will automatically connect to it.

The telephone connector output of the XLink BT HD works the same as a telephone line from the phone company. You can connect any standard telephone equipment to it. This includes telephones and answering machines. You can even connect it to office phones systems.


What does XLink do

XLink turns your cell phone into a Landline. Exactly like you used to pay the phone company for, except now it doesn't cost anything extra!

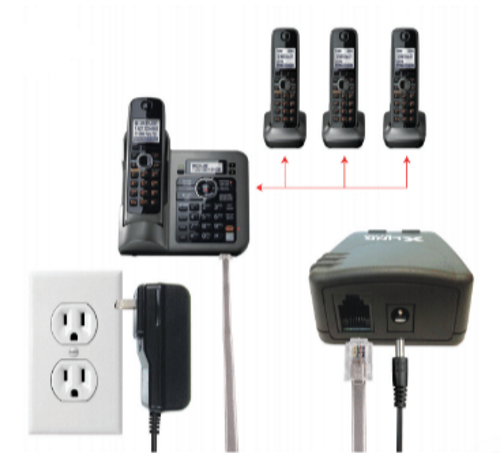

Plug as many telephones as you want into the XLink. They will all ring when there is an incoming call and you can answer the call using your home telephones.

Dail out using any regular telephones. When you pick up a home telephone you will hear dial tone and can dial normally and the call will be made using your cell phone.

Voice Dialing. Pick up any telephone and dial ## - this will activate Siri or Google Assistant and let you dial or give instructions from any telephone!


Antique telephones ringing

All XLinks support rotary / pulse dialing. Use antique telephones of all types.

XLink BT2 & BT HD have the highest output ringing power. XLink will ring multiple antique telephones.

Voice dialing. Voice dialing is supported from antique telephones by dialing a hook flash to activate the cell phone voice commands.


XLink BT HD User Guide

1

Because the XLink powers your home phones, never connect the XLink output port to the telephone company landline (ie. wall jack), either directly or through another telephone.

Étant donné que le dispositif XLink alimente vos téléphones fixes (soit vos téléphones de maison), ne branchez jamais le port de sortie XLink à la ligne terrestre de la compagnie de téléphone (c.-à-d. prise murale), soit directement, soit par l’entremise d’un autre téléphone.

Debido a que el XLink da poder a los teléfonos en la casa, nunca conecte el XLink a la clavija de la línea terrestre de la compañía de teléfonos. (ejemplo: la clavija de la pared), ya sea directamente o indirectamente a través de otro aparato telefónico.


2

Press down the Bluetooth button until it starts flashing rapidly

Tenez enfoncé sur le bouton Bluetooth jusqu'à ce qu'il commence à clignoter rapidement

Mantenga presionado el botón Bluetooth hasta que el la luz comenzará a parpadear rápidamente.

CALLING 911

Calling 911 using a cell phone works differently than calling 911 on a landline. In order for a call to 911 emergency services to be able to provide your exact location, E911 services must be deployed in your area and you must have a GPS enabled and activated cell phone. See your cell phone owner’s manual to determine if your cell phone has that feature and make sure that the feature is activated.

CALLING 911

On ne peut pas composer le 911 sur un cellulaire comme on le fait sur une ligne terrestre. Pour que les services d’urgence du 911 puissent savoir exactement où vous vous trouvez, les services E911 doivent être déployés dans votre secteur et vous devez avoir un GPS activé sur votre téléphone. Consultez le guide de l’utilisateur de votre cellulaire afin de déterminer si votre cellulaire offre cette caractéristique et assurez-vous qu’elle est activée.

CALLING 911

El llamar 911 utilizando su teléfono celular es diferente que el hacer una llamada al 911 por la línea terrestre. Para hacer una llamada a los servicios del 911 con el fin de proporcionar su localidad exacta, E911 deberá de estar desplegado en su área y deberá tener la opción de Sistema de Posicionamiento Global (GPS) en el teléfono que hace la llamada. Vea su manual de usuario del teléfono celular LLAMAR 911 para determinar si su teléfono tiene la opción y asegúrese que ha sido activada.

  1. Enable Bluetooth on your phone, or search for Bluetooth devices. You may have to select the “Handsfree” option, or search for headsets. See your cell phone owner’s manual for instructions.
  2. Select XLink BT
  3. . Enter the pairing code if requested
  1. Activez Bluetooth sur votre téléphone et cherchez les dispositifs Bluetooth. Vous devrez peut-être sélectionner l’option “mains libres” ou chercher des casques d’écoute. Consultez le guide d’utilisation de votre cellulaire pour les instructions.
  2. Selectionnez XLink BT
  3. Entrez le code de jumelage de Bluetooth si demande
  1. Active el Bluetooth en su teléfono celular y active la búsqueda de dispositivos con Bluetooth. Tal vez usted tenga que seleccionar la opción de “Hands Free” o "sin manos" o busque la opción de auricular. Refiérase a su manual de usuario del teléfono celular para instrucciones.
  2. Seleccione el XLink BT
  3. Teclee código de emparejamiento Bluetooth si es necesario

3

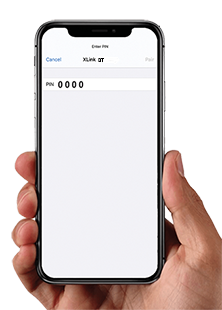

PAIRING CODE:

0 0 0 0

some cell phones only

CODIGO DE EMPAREJAMIENTO:

0 0 0 0

certains cellulaires seulement

CODE DE JUMELAGE:

0 0 0 0

solo algunos celulares
